Broadcast HD
12x HD cameras with SMPTE fiber optics

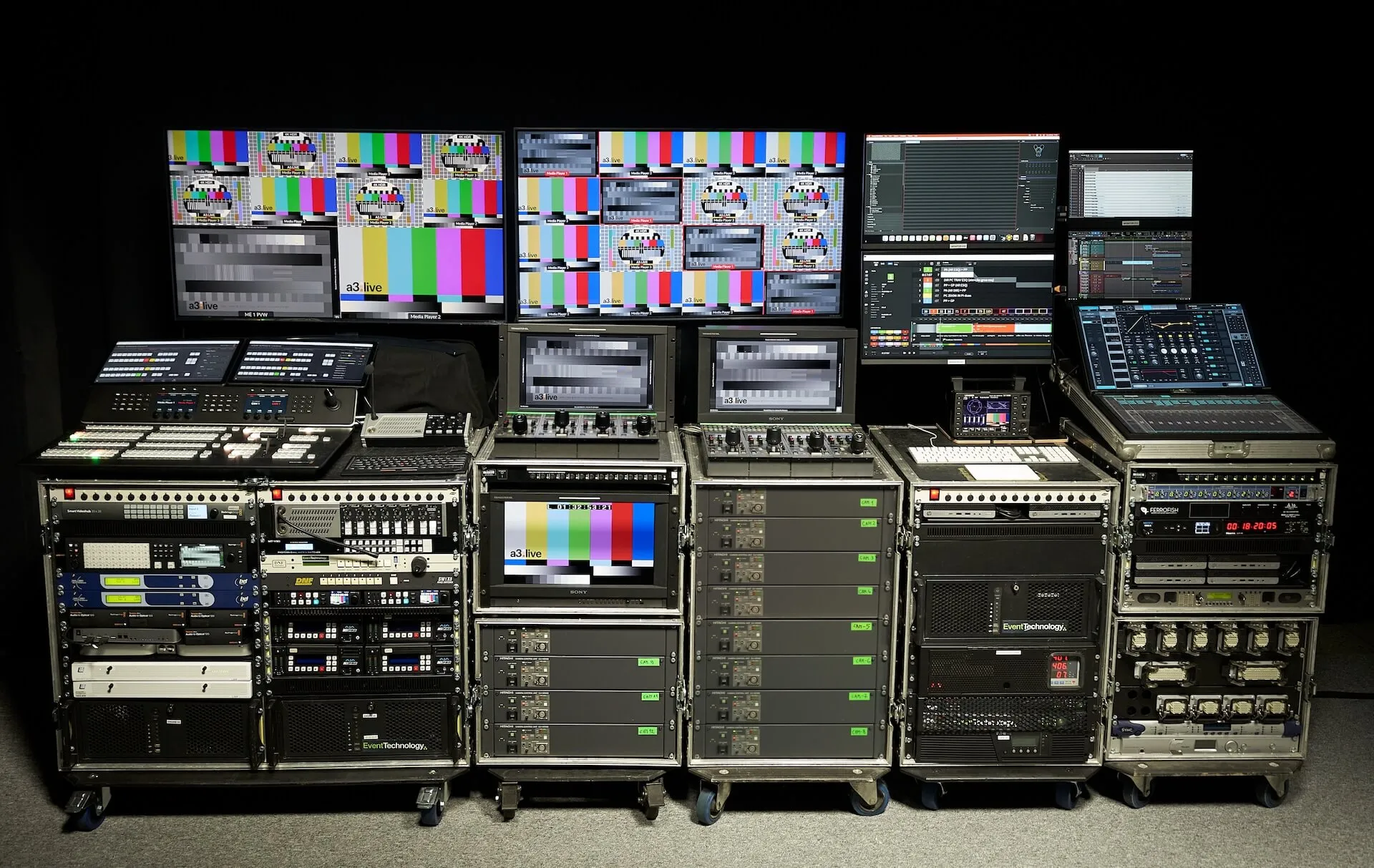

A new compact, modular and portable broadcast fly-pack solution delivers complex live productions., configurable for 4, 6, 10, or 12 cameras. Additional equipment, stage boxes, commentary gear, optical connections, and networks can be found in the Stage Boxes section.
Power Requirements
1x 230 Volt, 3 Phase, 32Amp
300m - 3 Phase 32 Amp Titanex cable
Supported video format
Full HD video 1080i50 ( SMPTE 274M , SMPTE 292M )
Cameras

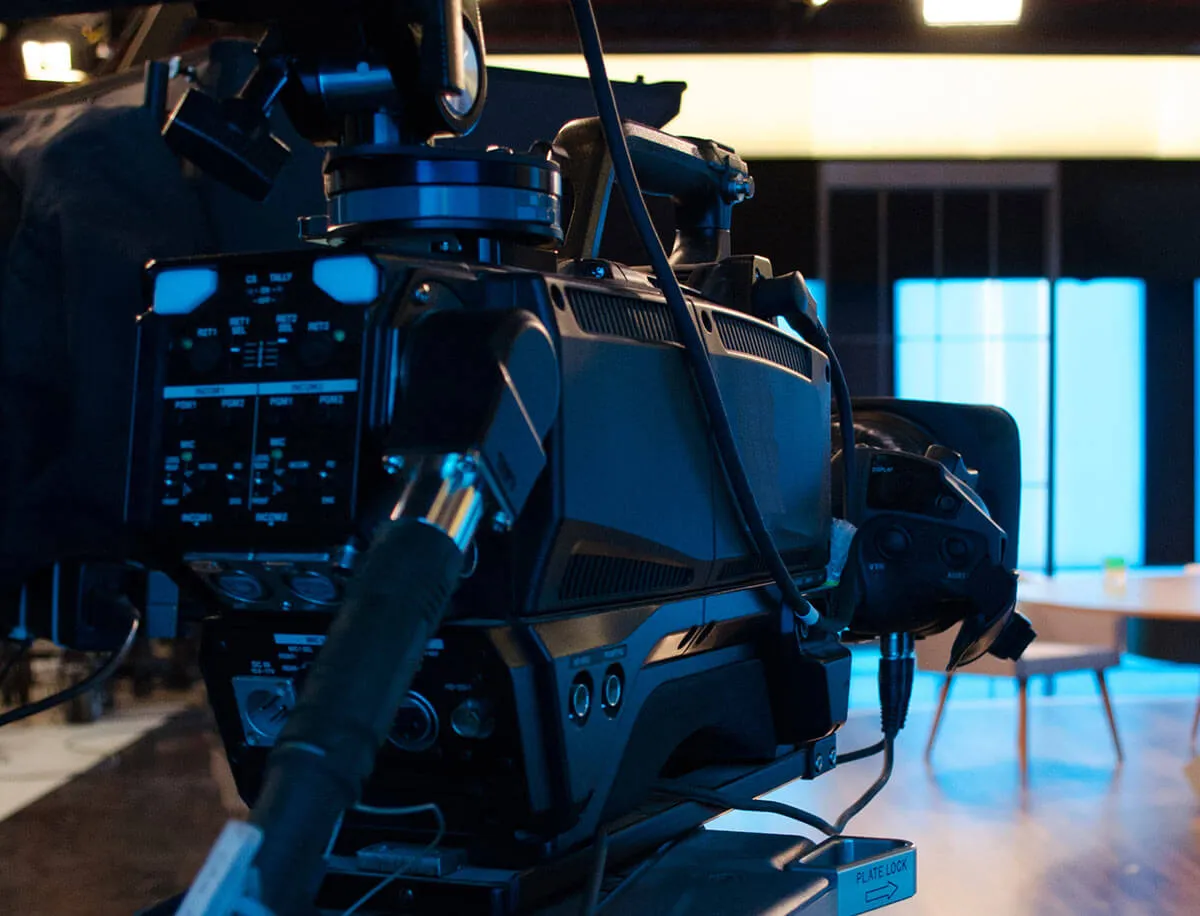

8x Hitachi Z-HD5000 Camera
4x Hitachi DK-Z50 Mini Box with fiber
4x Hitachi CU-HD500 Fiber Optic CCU
4x Hitachi CU-HD1000 Fiber Optic CCU

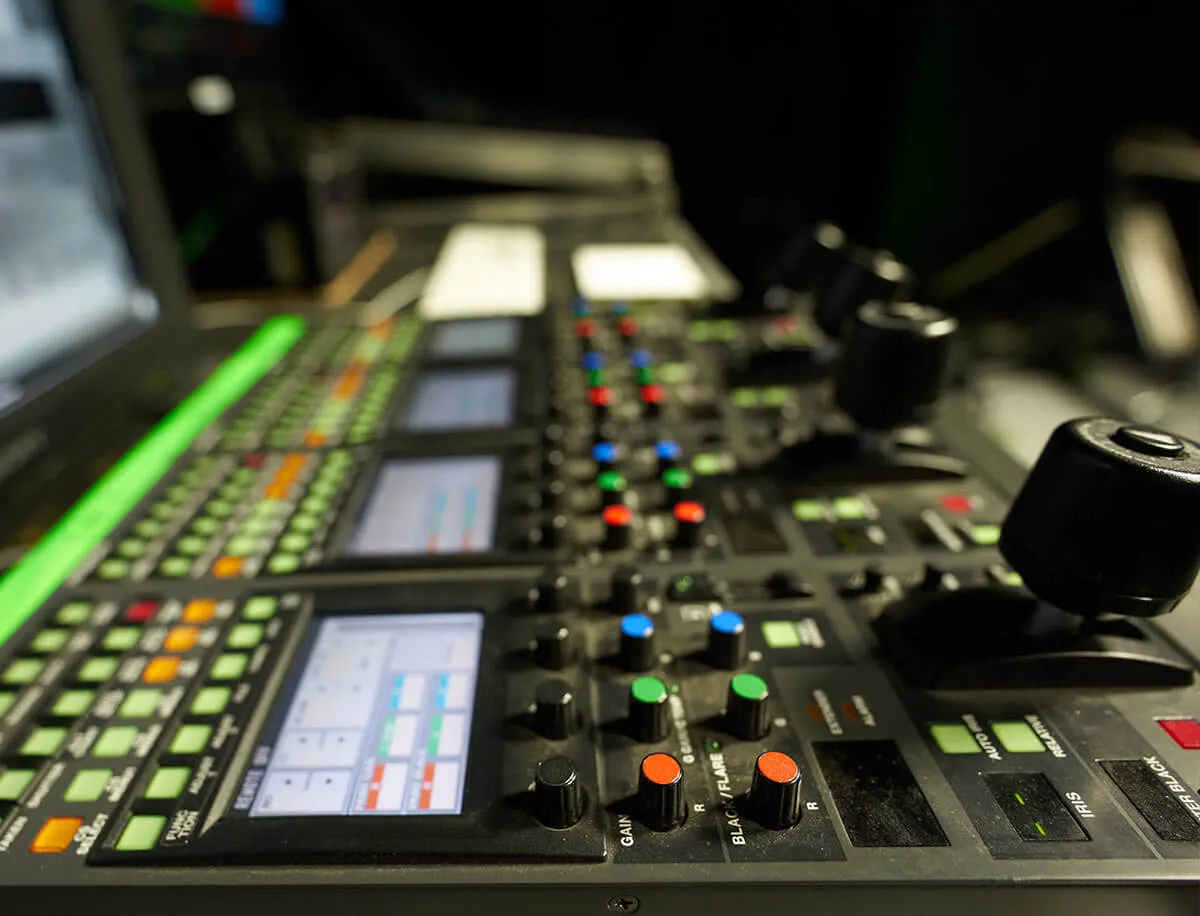

4x Hitachi RCP - RU-1500
8x Hitachi RCP - RC-Z21A
24x Lemo SMTPE Fibre Cable 100m
12x Studio or EFP viewfinders
Maximum Cameras
24x SMTPE Fibre cameras system
Wireless Camera Systems
2x DJI Transmission - Full sets
Camera Tripods
6x Vinten Cam-Gear
6x Sachtler pneumatic Cam-Gear
6x Hard Sachtler pneumatic pedestal ( Option )
Camera Lenses support
6x Canon HJ22ex7.6 with extender
4x Canon HJ12x6.5 with extender
2x Canon HJ9x5.2 with extender
4x Fujinon XA20sx8.5 Full remote servo control
4x Fujinon XA20sX8,5 + Servo kit
2x Canon XJ-55X Box Lenses (optional)
Video Routing
1x BMD Videohub 40x40 12G
1x BMD Videohub 20x20 12G
1x HDMI 20x20 HDR 4K Matrix

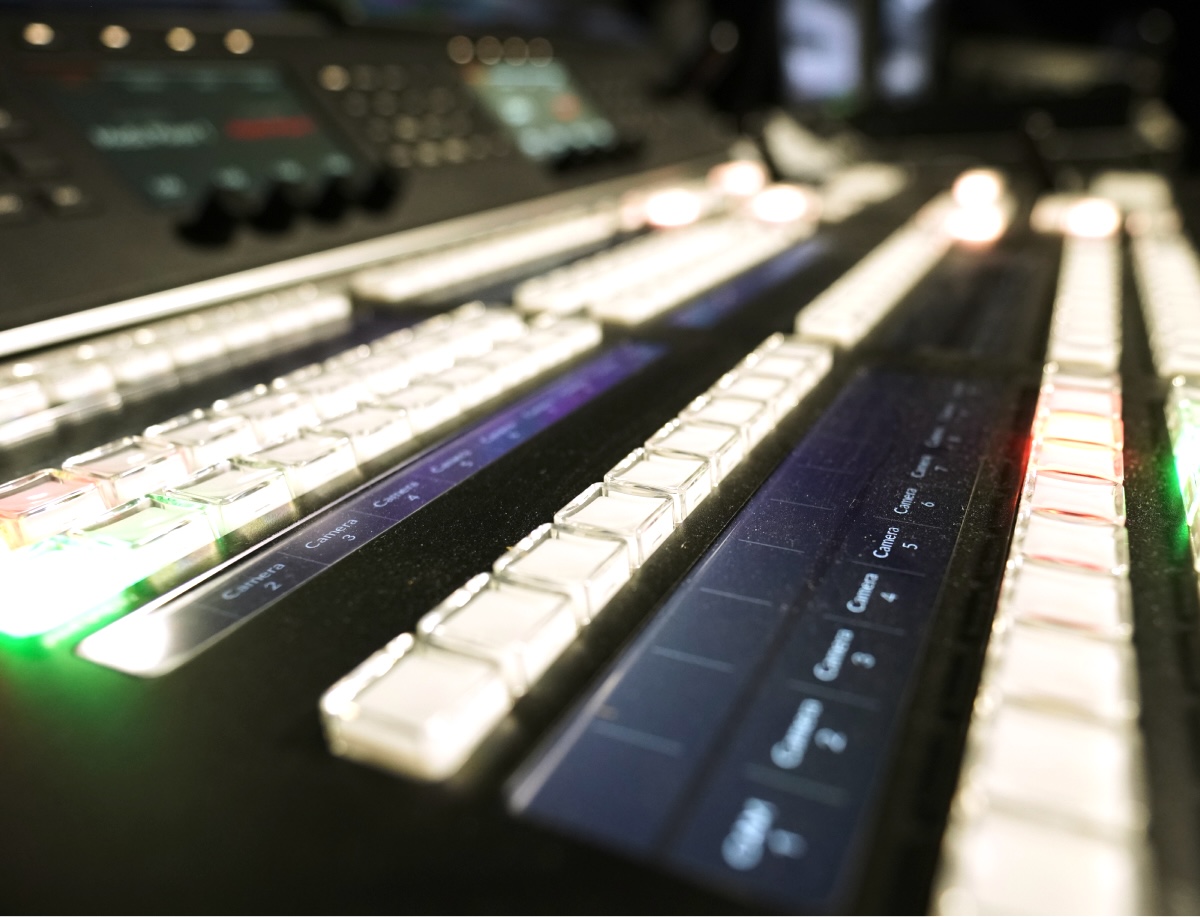

Production Switchers

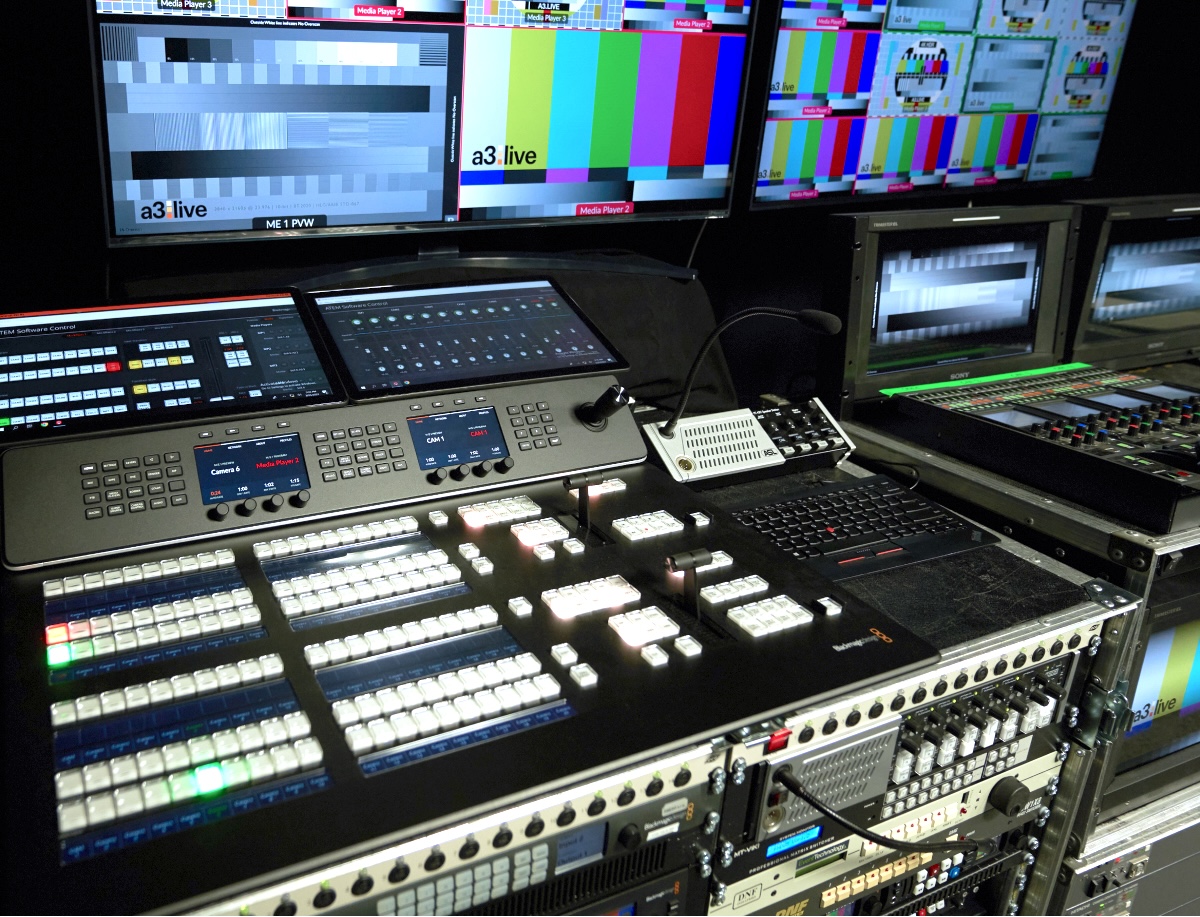

1x BMD Constelation 4K (4 M/E)
1x BMD Controler (2 M/E)
Production Room Monitors
4x Full Variable 4K multiviewers
1x Full Matrix Switcher for monitor wall
4x SONY OLED Trimaster HX
2x 43” LG OLED 4K Monitor
2x 27” LG OLED 4K Monitor
5x 27” Lenovo 4K LED Monitor
6x 21” Lenovo HD LED Monitor
Editing
2x Avid Media Composer Edit System
2x BMD Davinci Resolve Studio
1x 40TB Video Cloud storage
Video Recording
12x BMD 4K Hyperdeck Studio DDRs
6x Aja Ki PRO DDRs
2x UltraStudio 4K 12G
1x Modular 40TB Cloud video storage
24x SSD 4TB Fieldpac
1x Real-time upload of recorded files to internet cloud services
SloMo & Replay
2x BMD 8-Cam DaVinci Replay Editor
2x BMD Replay Controler
2x Vmix 8- Cam Slow Motion ( optional )
1x 40TB Replay storage
Graphics & Video Playaut
2x Caspar CG2
1x Singular.live licenses
2x QLab
Mediaservers for IMAG
2 x Dataton Watchout 7
Communication
1x ClearOne 24x24 intercom matrix
1x ASL Intercom Master system
2x ASL Desk intercom station
1x Unity wireless Intercom
2x ClearCom master station
2x ClearCom 2/4 wire converter
4x IFB – in ear
10x ClearCom Listen Beltpacks
6x Motorola Walkie Talkies
20x Beyerdynamic headsets
Wectroscope & Monitoring
2x Scope Box full edition

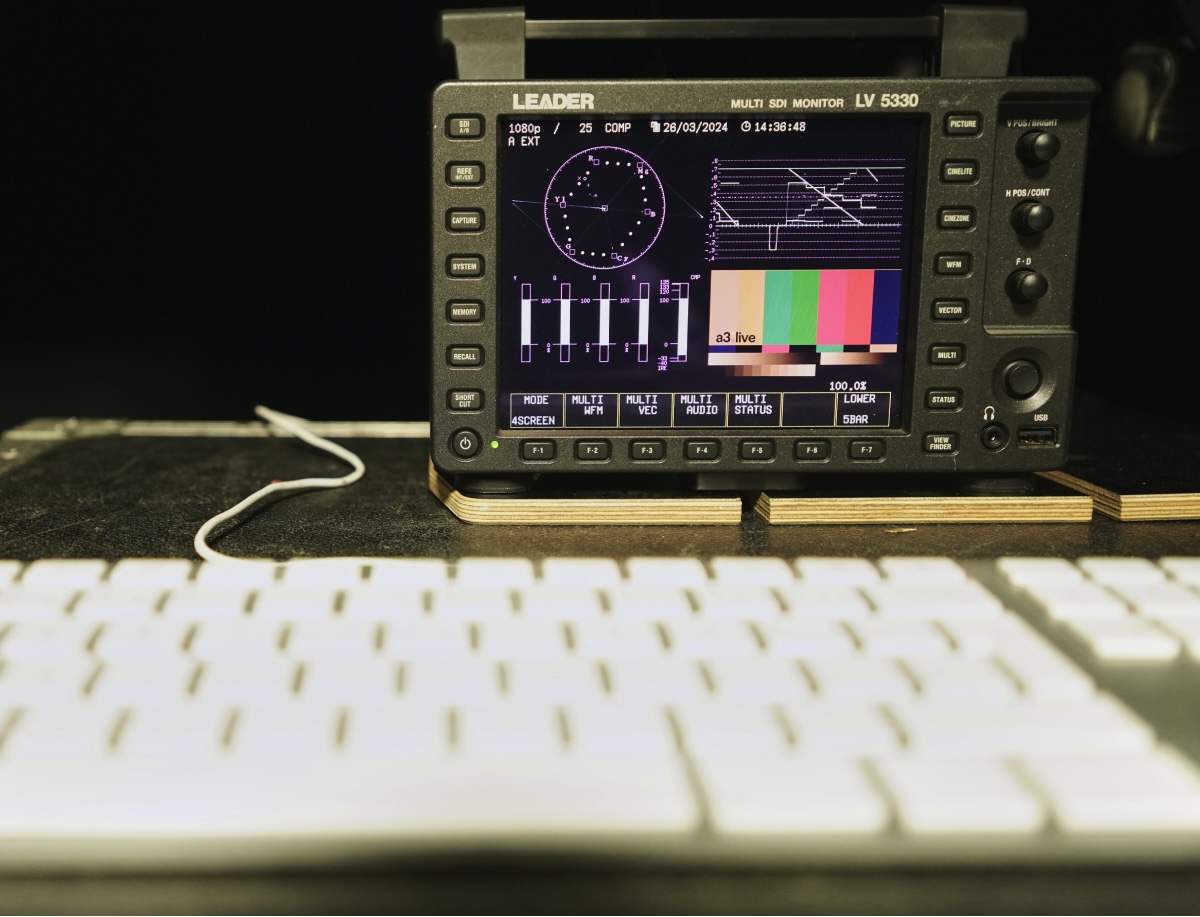

1x Leader LV 6300 LCD Scope
Control Systems & Rundown
1x Onetime - event rundown
1x Cue Pilot
6x Companion servers and controlers
1x Tally Cloud Server
SPG & Backup
1x Link Electronics SPG+ Redutancy
1x Link Electronics Digital Change-Over
Computers
2x i9 Media Server + Nvidia Quadro
2x Apple Mac M4
2x Apple Mac M1
8x HP Elite Desk Mini i7
Audio Supported format
Stereo, 5.1 Surround, Multichanel,Ambisonic
Audio Network
256 Channel Waves Digigrid I/O
256 Channel MADI I/O
64 Channel Dante I/O
64 Channel AES50 I/O
128 Channel AVB I/O
64 Channel SDI I/O Fairlight
32 Channel SDI Embed/Deembed
1x MADI Optical/Coaxial Bridge

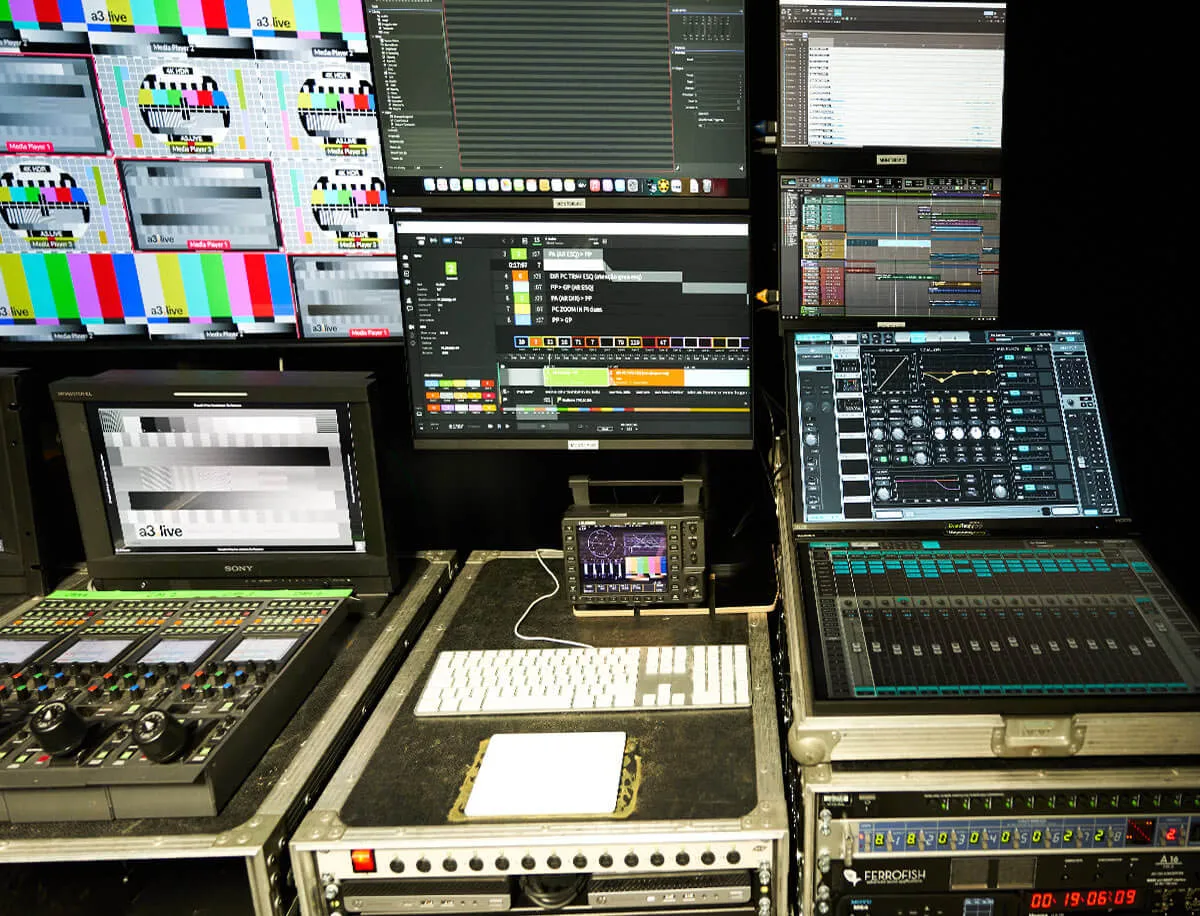

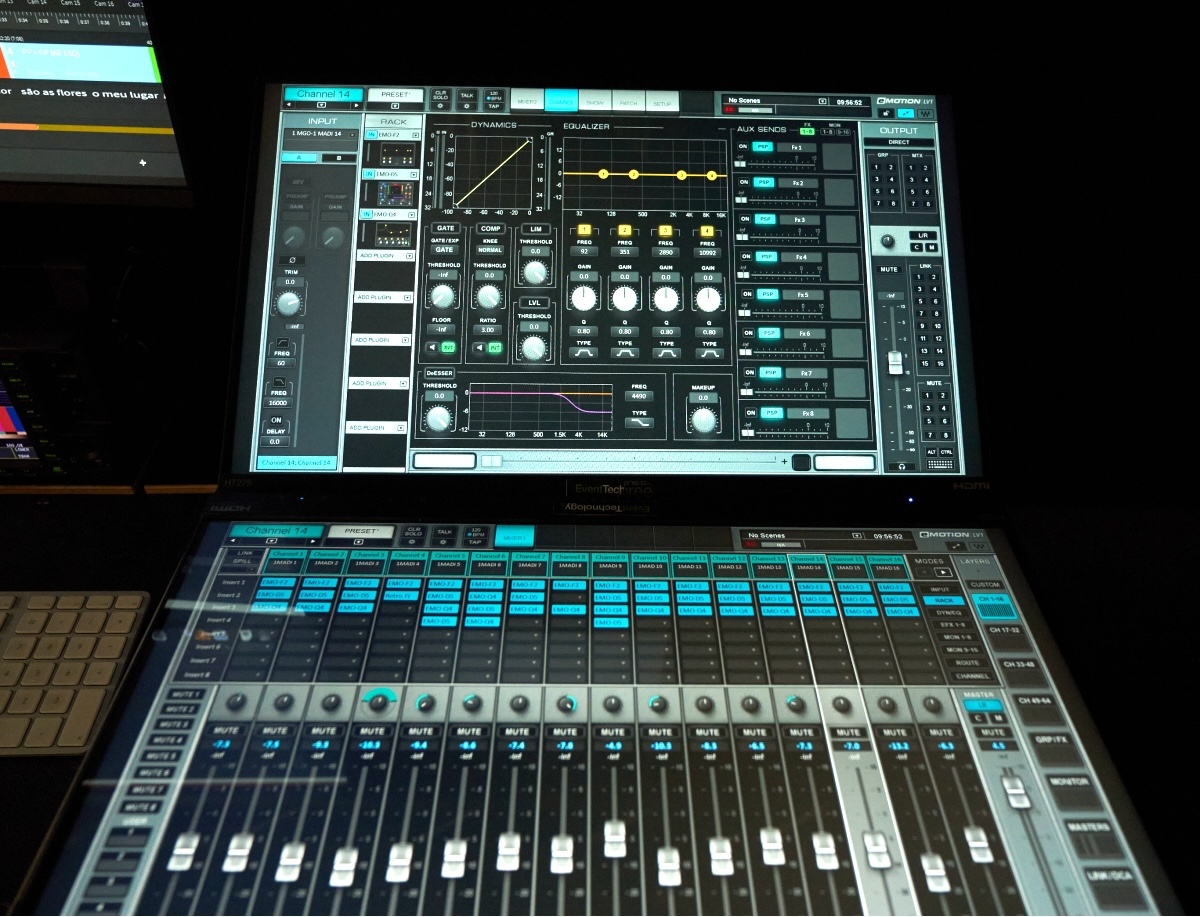

Mixing Consoles
2x Waves LV1 96khz
1x BMD Firlight console
2x MOTU AVB Mixer
Audio Playaut
QLab control cues
Audio Monitoring
4x Genelec Monitors
2x Ultimate Ears IEM + VR Tracker
2x Beyerdynamic DT 1990
Audio Recording
128 Channels Waves Tracks Live
128 Channels Pro Tools
128 Channels SDI ISO recording
Audio Servers & Plugins
6x Waves Extreme Server with ultimate waves plugin bundle

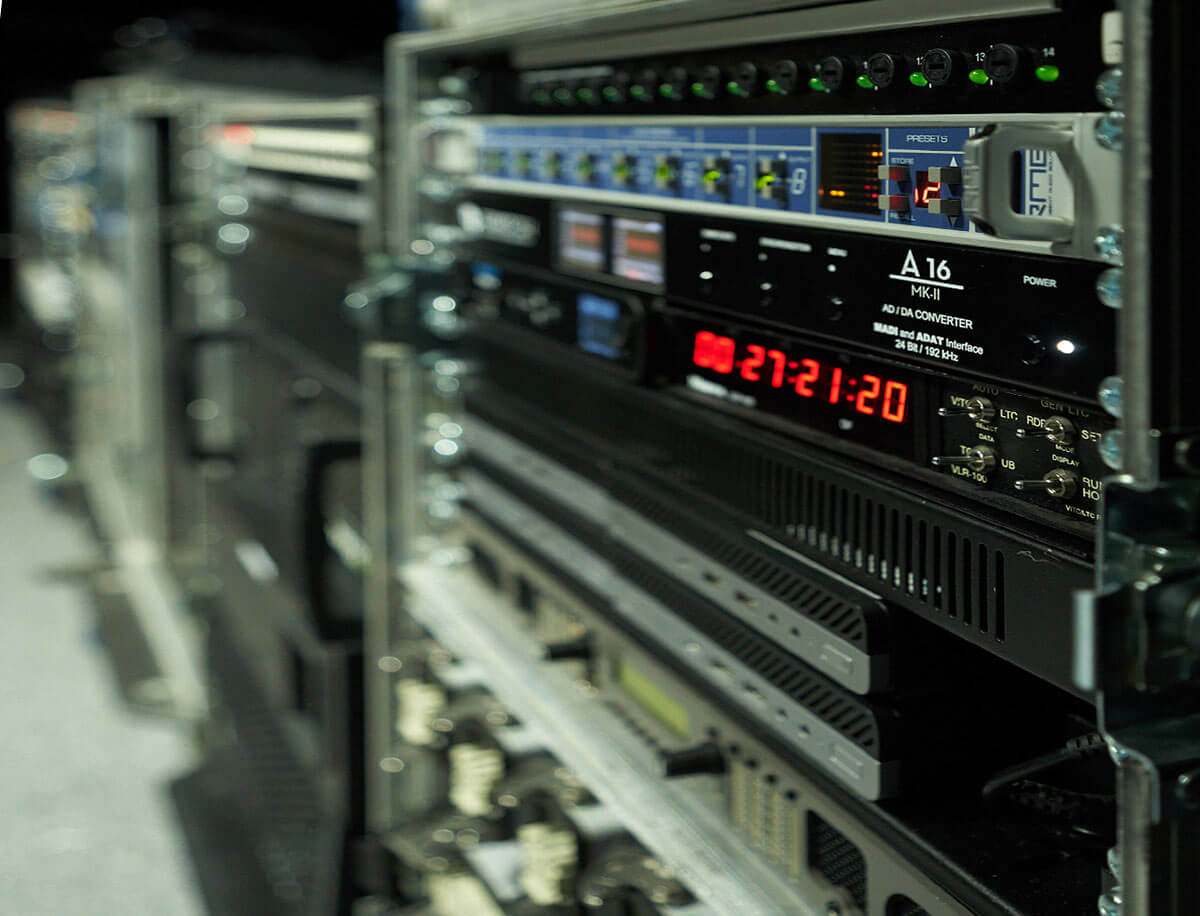

Stage Box & converters
2x Waves StageGrid 4000
4x Ferrofish Pulse
2x Motu M64
1x Digigrid PRO driver
