OB VAN #1

Broadcast HD
12x HD cameras with SMPTE fiber optics

Completely modular OB VAN setup, configurable for 4, 6, 10, or 12 cameras, with the option to move racks outside the OB VAN as a FlyPack when needed on stage. Additional equipment, stage boxes, commentary gear, optical connections, and networks can be found in the Stage Boxes section.

OB VAN #1

General Information

  • Lenght 7,4m - With 1,9m
  • Height 2,6m - Weight 3,2t

Power Requirements

  • 1x 230 Volt, 3 Phase, 32Amp
  • 300m - 3 Phase 32 Amp Titanex cable

Supported video format

  • Full HD video 1080p50 or 1080i50 ( SMPTE 274M , SMPTE 292M )

Cameras

  • 8x Hitachi Z-HD5500 Camera
  • 4x Hitachi DK-H200 Mini Box with fiber
  • 4x Hitachi CU-HD500 Fiber Optic CCU
  • 4x Hitachi CU-HD1000 Fiber Optic CCU
  • 4x Hitachi RCP - RU-1500
  • 8x Hitachi RCP - RC-Z21A
  • 24x Lemo SMTPE Fibre Cable 100m
  • 12x Studio or EFP viewfinders

Maximum Cameras

  • 24x SMTPE Fibre cameras system

Wireless Camera Systems

  • 2x DJI Transmission - Full sets

Camera Tripods

  • 6x Vinten Cam-Gear
  • 6x Sachtler pneumatic Cam-Gear
  • 6x Hard Sachtler pneumatic pedestal ( Option )

Camera Lenses support

  • 6x Canon HJ22ex7.6 with extender
  • 4x Canon HJ12x6.5 with extender
  • 2x Canon HJ9x5.2 with extender
  • 4x Fujinon XA20sx8.5 Full remote servo control
  • 4x Fujinon XA20sX8,5 + Servo kit
  • 2x Canon XJ-55X Box Lenses (optional)
OB VAN #1OB VAN #1

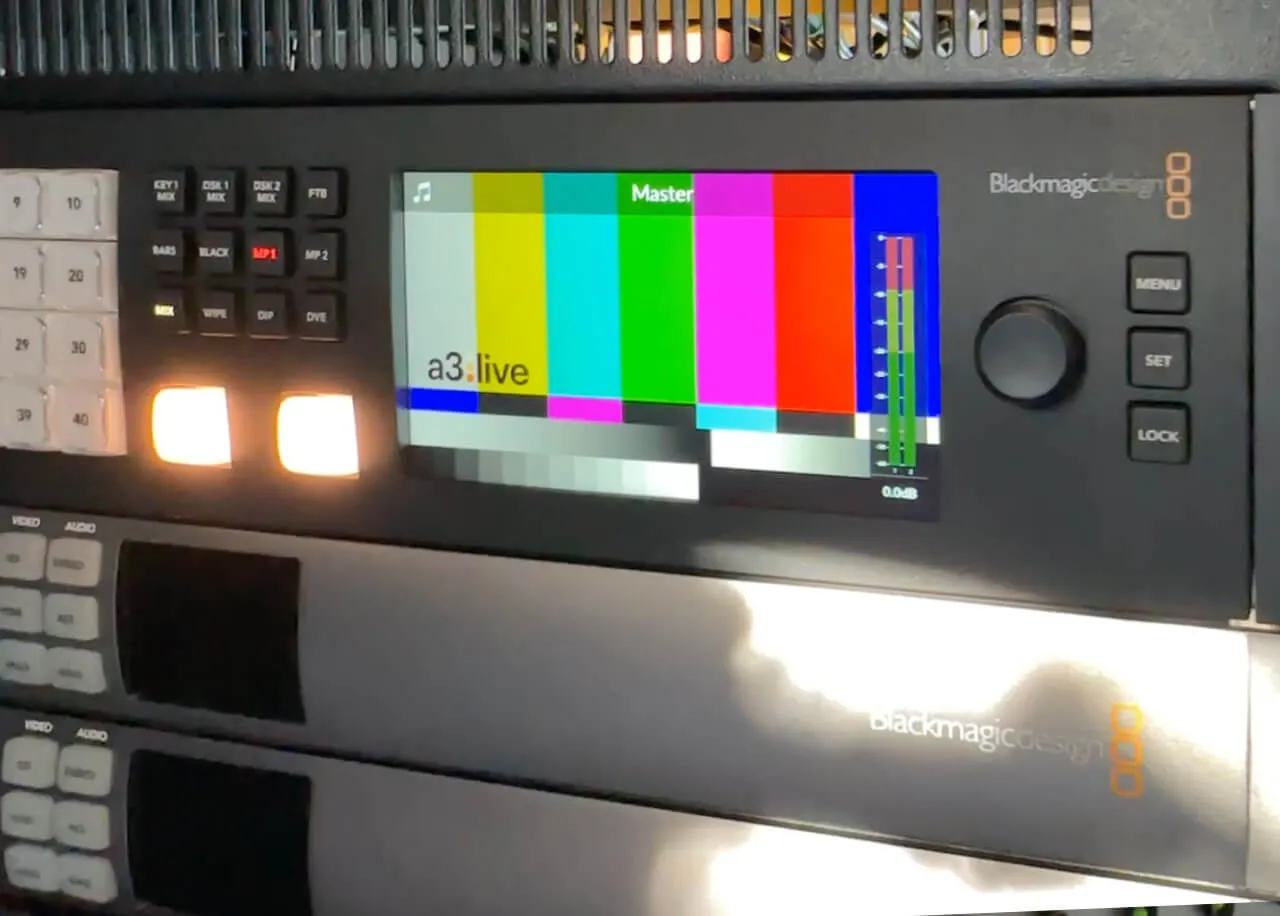

Video Routing

  • 1x BMD Videohub 40x40 12G
  • 1x BMD Videohub 20x20 12G
  • 1x HDMI 20x20 HDR 4K Matrix

Production Switchers

  • 1x BMD Constelation 4K (4 M/E)
  • 1x BMD Controler (2 M/E)

Production Room Monitors

  • 4x Full Variable 4K multiviewers
  • 1x Full Matrix Switcher for monitor wall
  • 4x SONY OLED Trimaster HX
  • 2x 43” LG OLED 4K Monitor
  • 2x 27” LG OLED 4K Monitor
  • 5x 27” Lenovo 4K LED Monitor
  • 6x 21” Lenovo HD LED Monitor

Editing

  • 2x Avid Media Composer Edit System
  • 2x BMD Davinci Resolve Studio
  • 1x 40TB Video Cloud storage

Video Recording

  • 12x BMD 4K Hyperdeck Studio DDRs
  • 6x Aja Ki PRO DDRs
  • 2x UltraStudio 4K 12G
  • 1x Modular 40TB Cloud video storage
  • 24x SSD 4TB Fieldpac
  • 1x Real-time upload of recorded files to internet cloud services

SloMo & Replay

  • 2x BMD 8-Cam DaVinci Replay Editor
  • 2x BMD Replay Controler
  • 2x Vmix 8- Cam Slow Motion ( optional )
  • 1x 40TB Replay storage

Graphics & Video Playaut

  • 2x Caspar CG2
  • 1x Singular.live licenses
  • 2x QLab

Mediaservers for IMAG

  • 2 x Dataton Watchout 7

OB VAN #1

OB VAN #1OB VAN #1

Communication

  • 1x ClearOne 24x24 intercom matrix
  • 1x CTP Systems Talkback 24 Intercom Matrix
  • 6x CTP Systems Intercom Station
  • 1x ASL intercom master station
  • 5x ClearCom Tempest wireless Intercom
  • 2x ClearCom master station
  • 2x ClearCom 2/4 wire converter
  • 4x IFB – in ear
  • 10x ClearCom Listen Beltpacks
  • 6x Motorola Walkie Talkies
  • 20x Beyerdynamic headsets

Wectroscope & Monitoring

  • 2x Scope Box full edition
  • 1x Leader LV 6300 LCD Scope

Control Systems & Rundown

  • 1x OneTime - event rundown
  • 1x Cue Pilot
  • 4x Companion servers and controlers
  • 1x Tally Cloud Server

SPG & Backup

  • 1x Link Electronics SPG+ Redutancy
  • 1x Link Electronics Digital Change-Over

Computers

  • 2x i9 Media Server + Nvidia Quadro
  • 2x Apple Mac M4
  • 2x Apple Mac M1
  • 8x HP Elite Desk Mini i7
OB VAN #1OB VAN #1

Audio Supported format

  • Stereo, 5.1 Surround, Multichanel,Ambisonic

Audio Network

  • 128 Channel Dante Redutant I/O
  • 128 Channel Waves Digigrid I/O
  • 128 Channel MADI I/O
  • 64 Channel SDI I/O Fairlight
  • 32 Channel SDI Embed/Deembed
  • 1x MADI Optical/Coaxial Bridge

Mixing Consoles

  • 1x Yamaha QL1
  • 1x Waves LV1 Clasic
  • 1x BMD Firlight console

Stage Box & converters

  • 2x Yamaha RIO 32 Ch.
  • 1x Waves StageGrid 4000
  • 2x Ferrofish Pulse
  • 2x Optical Audio Stage box

Audio Monitoring

  • 4x Genelec Monitors
  • 2x Ultimate Ears IEM + VR Tracker
  • 2x Beyerdynamic DT 1990

Audio Recording

  • 128 Channels Waves Tracks Live
  • 128 Channels Pro Tools
  • 128 Channels SDI ISO recording

Audio Servers & Plugins

  • 6x Waves Extreme Server with ultimate waves plugin bundle

Audio Playaut

  • QLab control cues
OB VAN #1OB VAN #1
